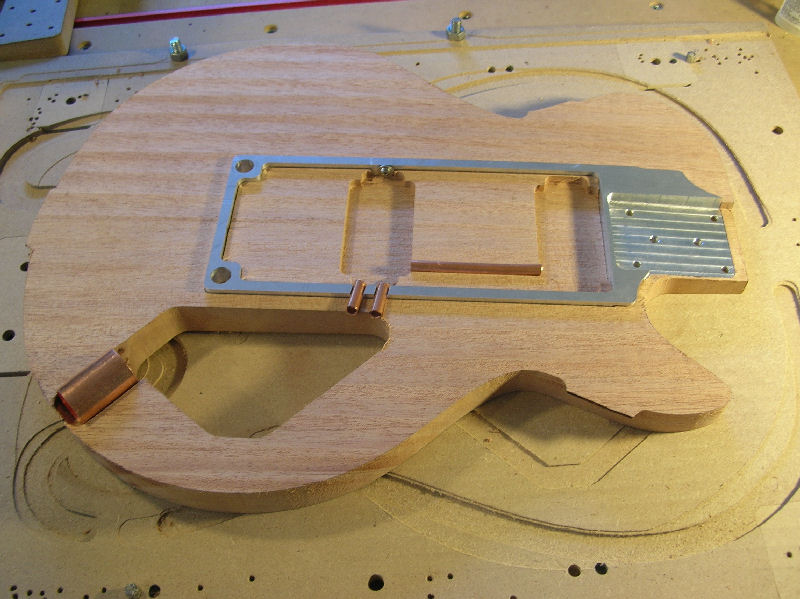

To show the construction, below is the bottom section of the La Paz body with the aluminum block installed. The design also allows the wiring channels to be lined with copper tubing, all of which is grounded to the aluminum block, so Saguaro guitars are very well shielded.
And below is the underside of the top section of the body showing the routed section for the aluminum block and control cavity.
To make the neck more stable, the La Paz has a maple core composite neck.

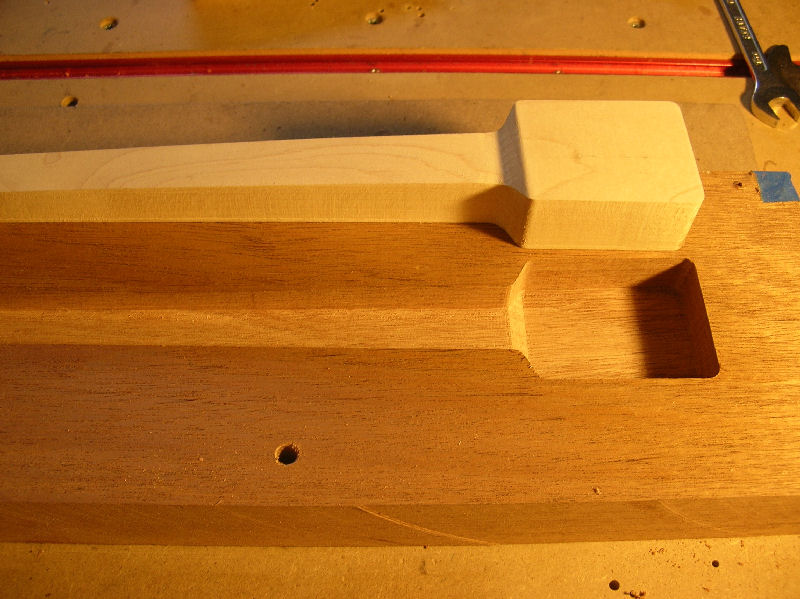

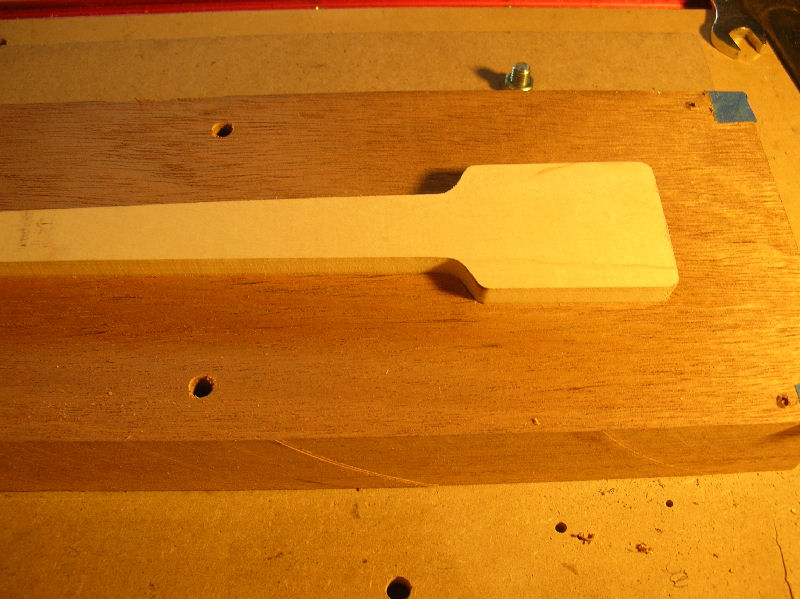

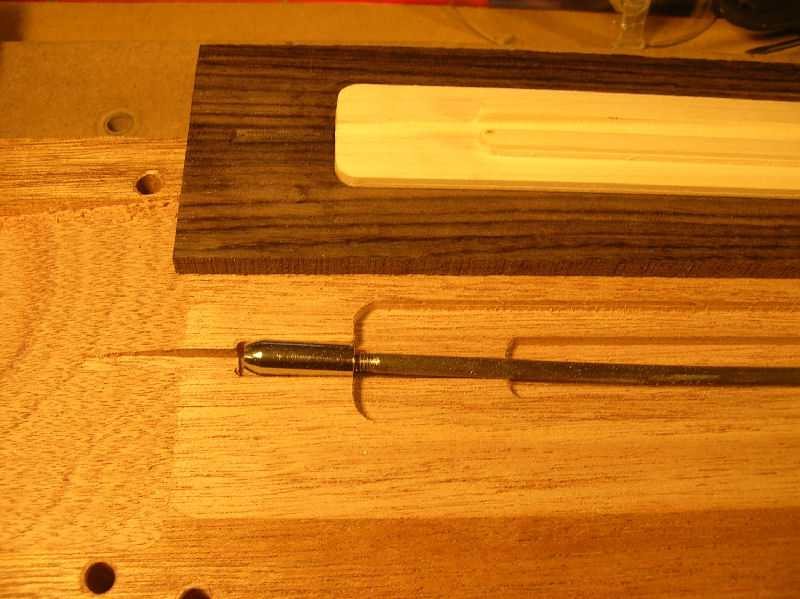

Though none of the maple is visible from the outside, the core allows the threaded inserts the neck bolts thread into to be mounted in harder maple, preventing them from stripping in softer mahogany. The images below show the construction of a La Paz neck.

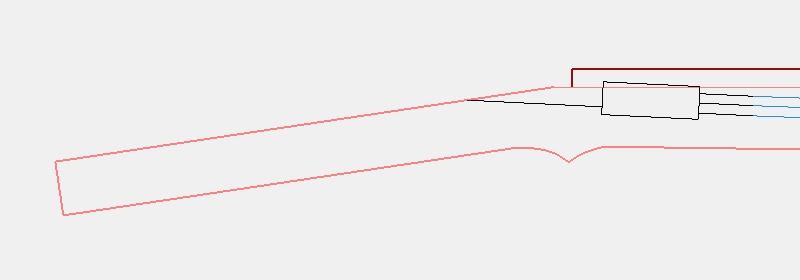

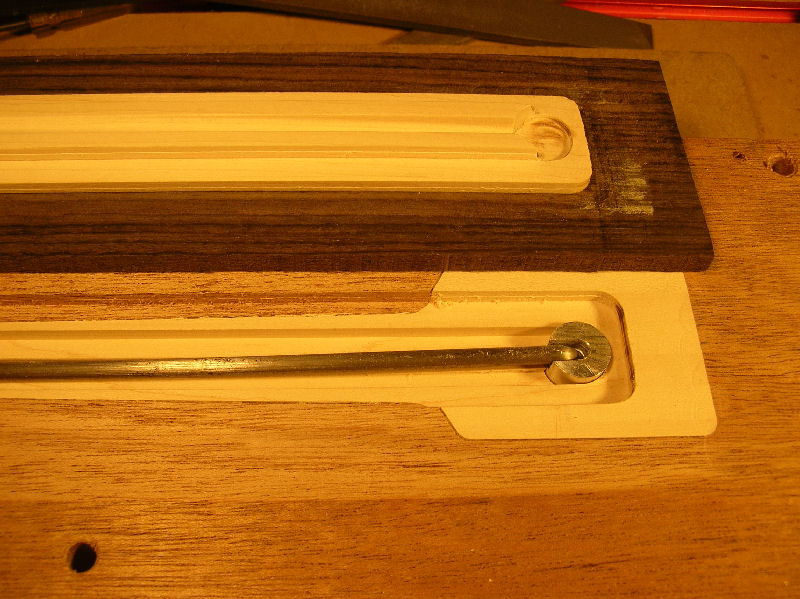

A weakness of some single cut guitars is the headstocks are prone to break off if the guitar is ever dropped. This is due to the large amount of wood routed under the trussrod cover to fit the trussrod nut. This reduces the cross sectional ares right where the neck is the weakest, at the headstock transition. To increase the strength in this area, the La Paz neck has a "bullet" style trussrod adjuster nut routed in an area under the fretboard between the nut and 1st fret.

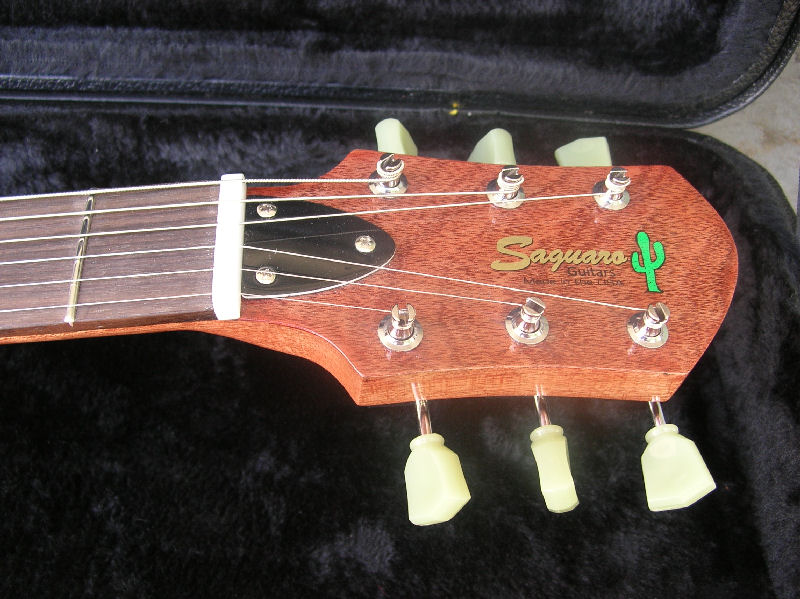

Only a small channel is routed under the trussrod cover to allow access for a 1/8" Allen wrinch to make trussrod adjustments.

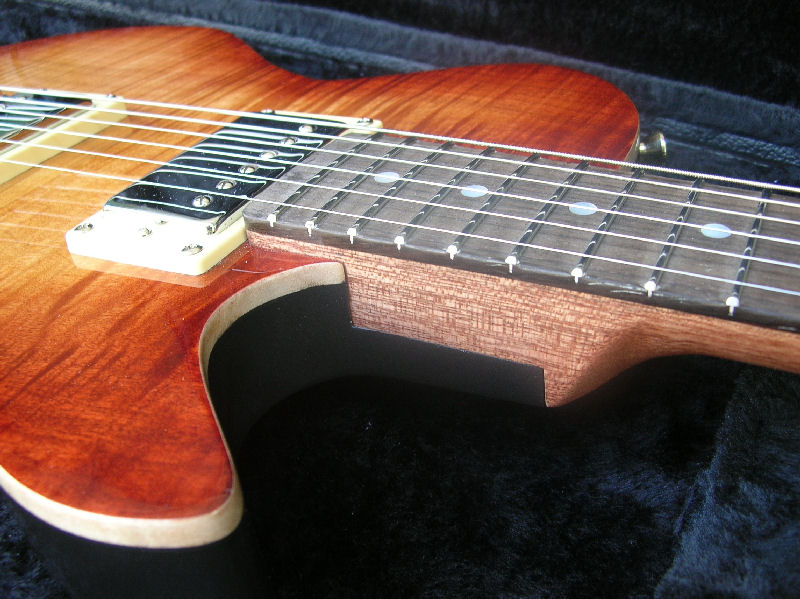

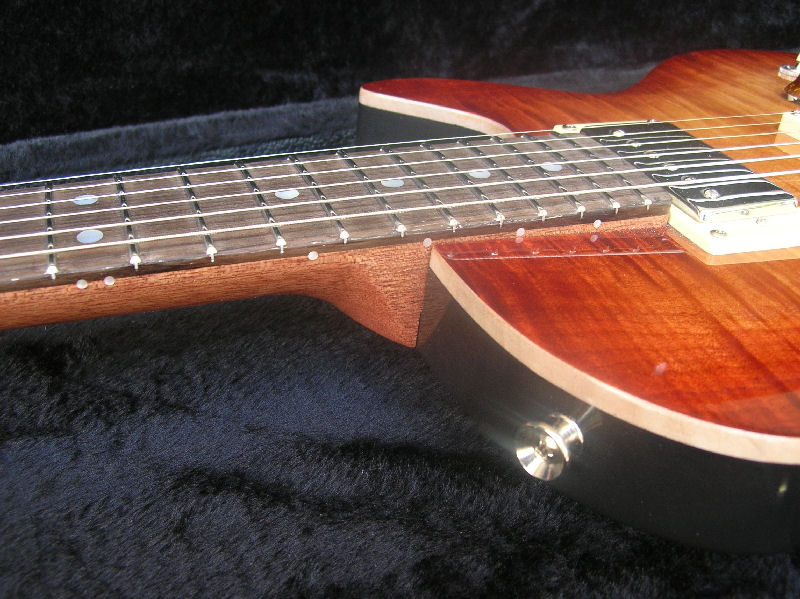

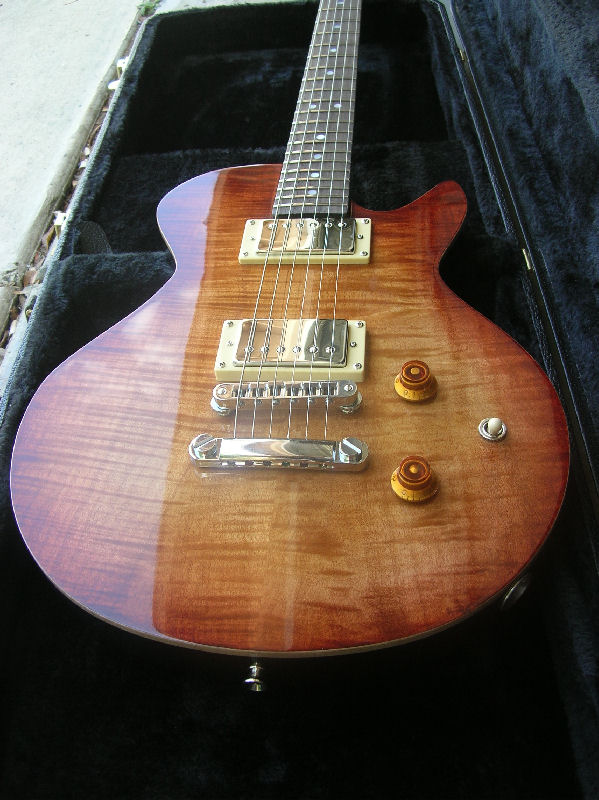

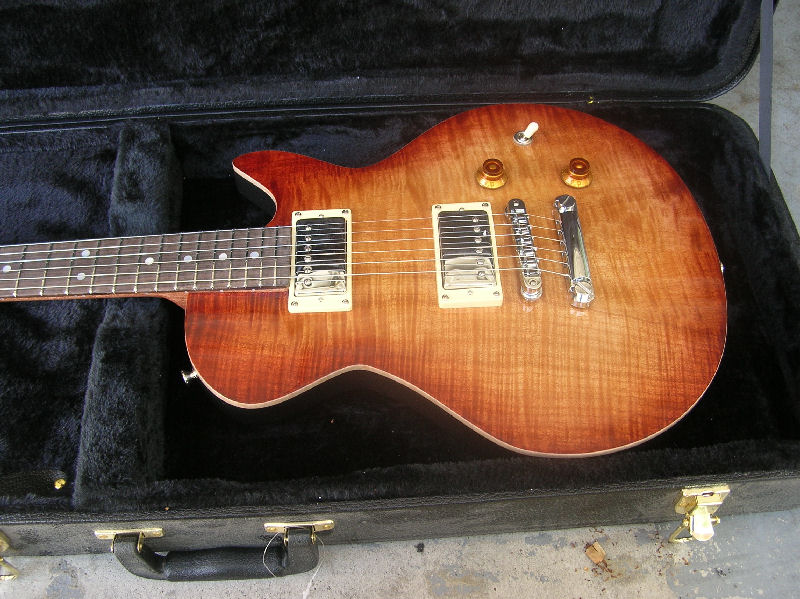

Below are some more images of La Paz SN 008.
